THERMALTAKE LB360-S ARGB 360mm CPU Liquid Cooler ( Black ) ( With LCD Display )

Features  of THERMALTAKE LB360-S ARGB 360mm CPU Liquid Cooler ( Black ) ( With LCD Display )

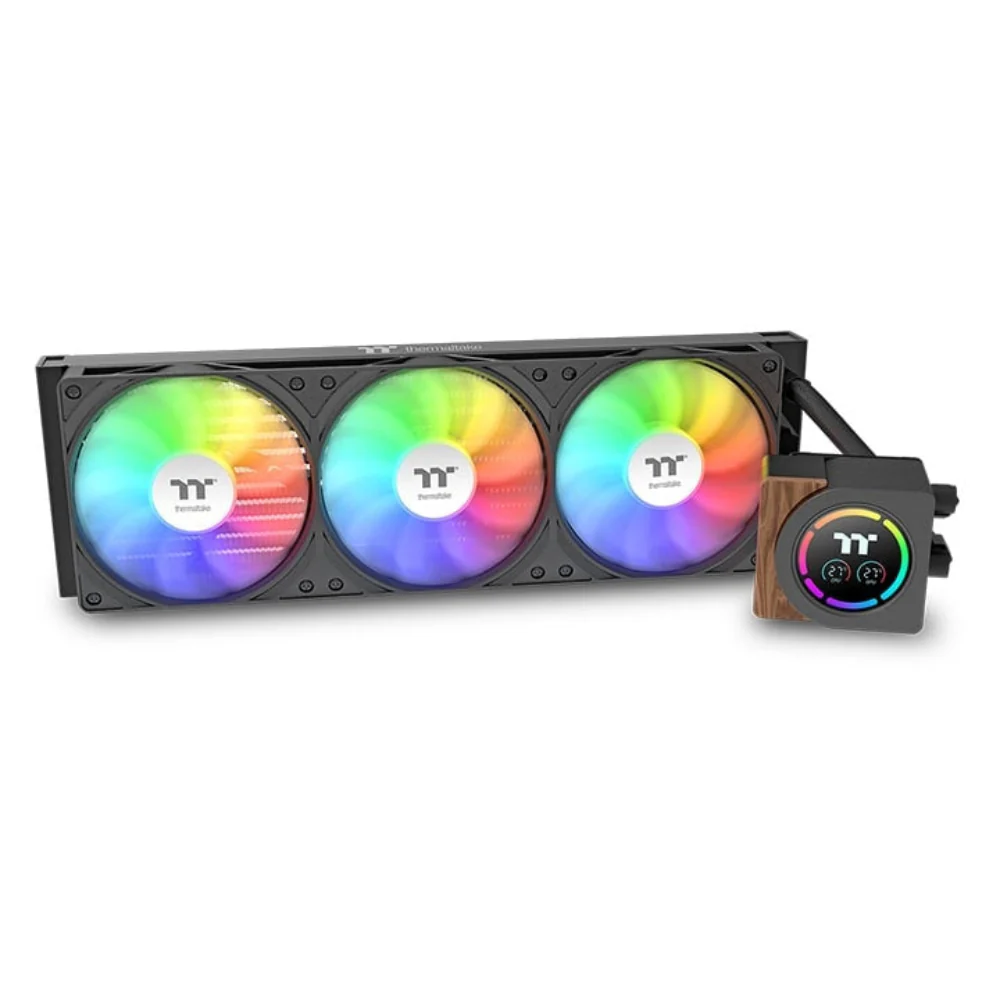

LB360-S ARGB Sync AIO Liquid Cooler

The LB360-S ARGB Sync features a wood-grain decorated water block with a rounded segment LCD display, combining natural aesthetics with precise system monitoring. Its single-frame fan design ensures clean cable management and effortless installation. Equipped with a 360mm ARGB fan, it delivers stunning lighting effects while keeping low noise levels.

AIO Cooling Inspired by Natural Simplicity

The LB360-S ARGB Sync blends natural wood-grain aesthetics with modern cooling technology to create a refined and harmonious design. A rounded segment LCD display provides real-time CPU and GPU temperature monitoring, while the single-frame fan design simplifies cable management for a refined, well-organized system presentation.

Sophisticated Wood-Grain Elegance

The LB360-S ARGB Sync features a premium wood-grain panel on the left side of the water block, bringing a natural and warm aesthetic to your build. It creates a sophisticated atmosphere that merges nature’s beauty with high cooling performance.

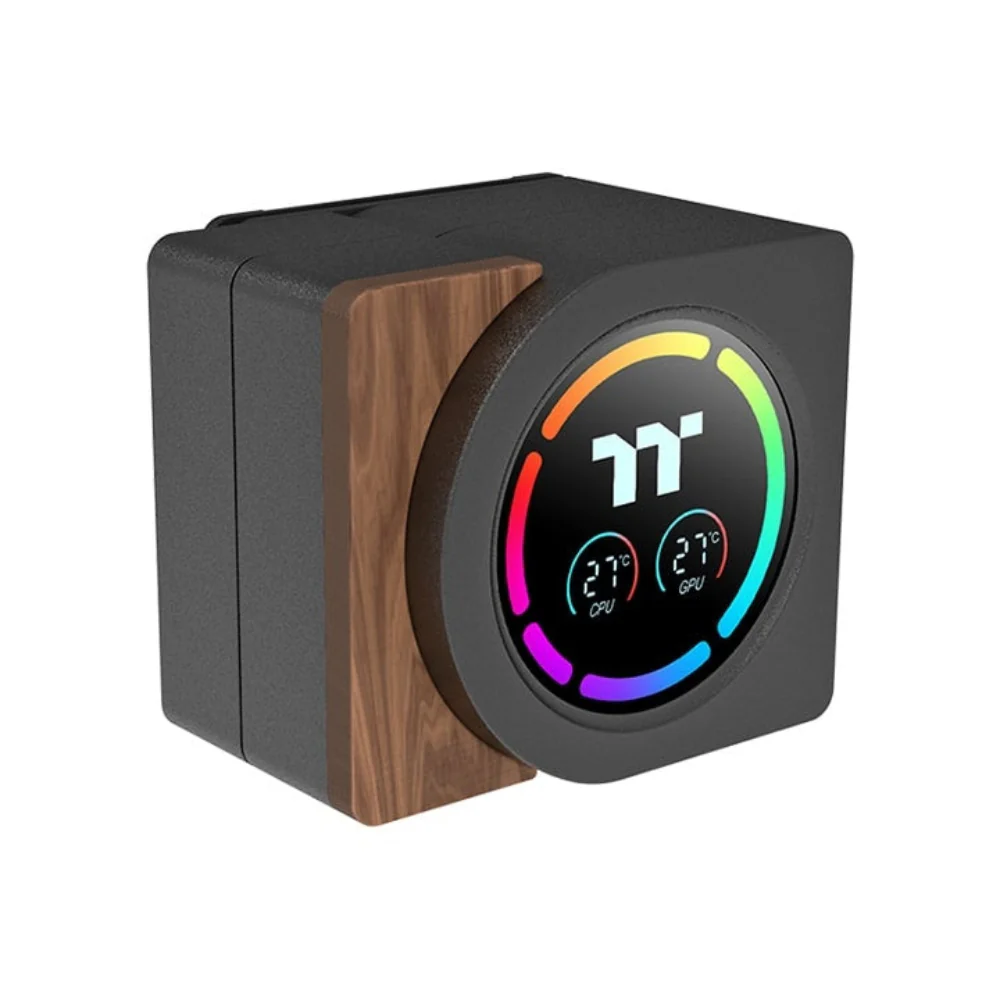

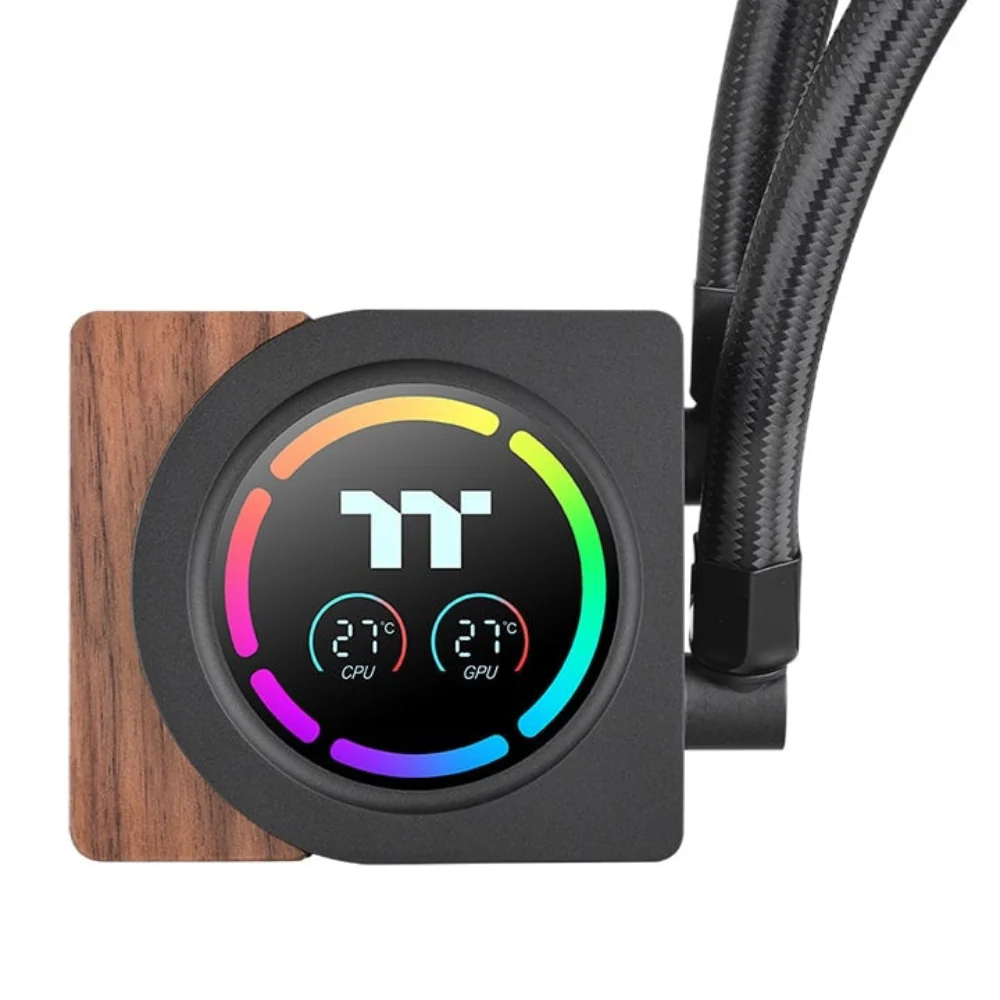

Precision Monitoring with Segment LCD Display

The LB-S series is equipped with a rounded segment LCD display that provides real-time monitoring of CPU and GPU temperatures, keeping critical system data clearly visible at a glance.

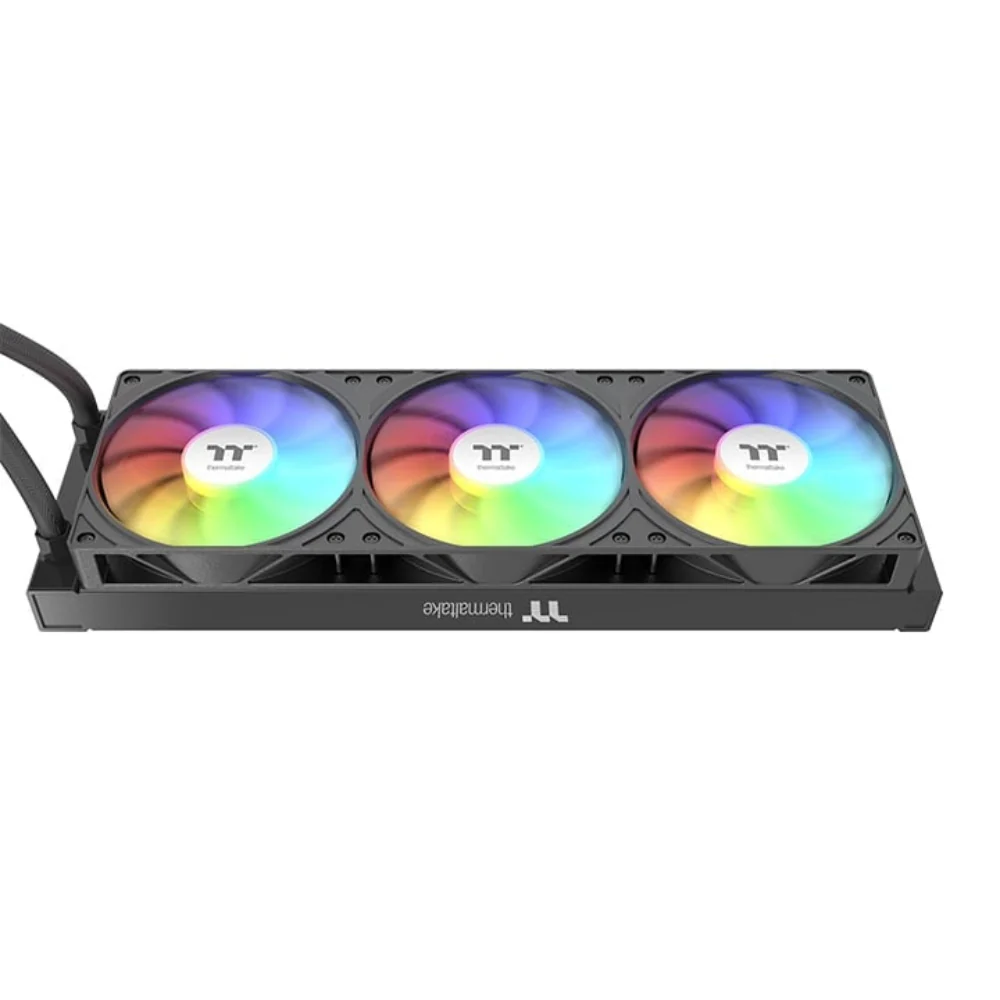

Elevate ARGB Fan Performance to the Next Level

LB360-S ARGB Sync AIO Liquid Cooler has a powerful 360mm PWM fan module, a single-frame unit combining three 120 mm fans. Each fan provides an airflow of 76.8 CFM with 3.04 mm-H2O static pressure while maintaining a low noise level of 33.8 dB-A, offering exceptional cooling performance for your system.

Enhanced Radiator with a Compact Design

The LB-S ARGB Sync AIO Liquid Cooler series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Powerful Cooling with Advanced Pump

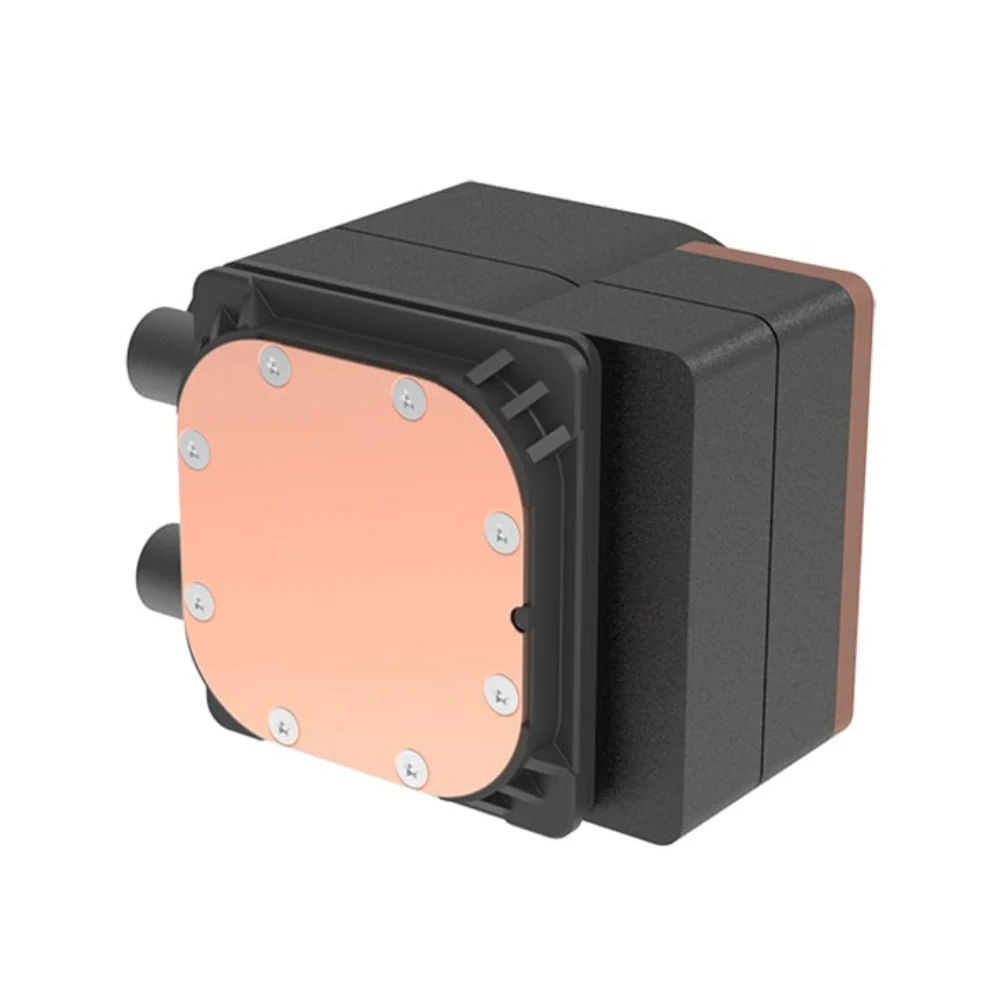

The high-quality pump enables maximum water circulation, keeping the copper plate consistently cool. Combined with a high-performance copper base plate, this design accelerates thermal conductivity and rapidly transfers heat away from your CPU.

PUMP

• Motor Speed : PWM 2000~2900 RPM
• Rated Voltage : 12V
• Rated Current : 0.35A
• Power Input : 4.2W
• Connector : 2510 – 4 Pin

CPU Display

• Rated Voltage : 5V
• Rated Current : 0.2A
• Power Input : 1W
• Display Type : Segment code LCD
• Interface : Micro USB to USB (9PIN)

Display Support: System Compatibility : Windows 10 / 11

WATER BLOCK: Material : Copper

Fan:

• Dimension : 360 × 120 × 25.4 mm
• Fan Speed : PWM 700~1900 R.P.M
• Rated Voltage : 12V / 5V
• Rated Current : 0.9 A & 0.72 A
• Power Input : 10.8 W & 3.6 W
• Air Flow : 76.8 CFM (per fan)
• Static Pressure : 3.04 mm-H2O (per fan)
• Noise Level : 33.8 dB-A (per fan)
• Connector : 2510 – 4 Pin / ARGB – 3Pin

Tube

• Length : 400 mm
• Material : Rubber

Radiator

• Dimension : 397 × 120 × 27 mm
• Material : Aluminum

COMPATIBILITY

• CPU Socket : Intel LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 AMD AM5 / AM4

TDP: 360W



Specifications of THERMALTAKE LB360-S ARGB 360mm CPU Liquid Cooler ( Black ) ( With LCD Display )



Model Name	LB360-S ARGB Sync AIO Liquid Cooler
P/N	CL-W499-PL12SW-A
PUMP	Motor Speed : PWM 2000~2900 RPM Rated Voltage : 12V Rated Current : 0.35A Power Input : 4.2W Connector : 2510 – 4 Pin
CPU Display	Rated Voltage : 5V Rated Current : 0.2A Power Input : 1W Display Type : Segment code LCD Interface : Micro USB to USB (9PIN
Display Support	System Compatibility : Windows 10 / 11
WATER BLOCK	Material : Copper
Fan	Dimension : 360 × 120 × 25.4 mm Fan Speed : PWM 700~1900 R.P.M Rated Voltage : 12V / 5V Rated Current : 0.9 A & 0.72 A Power Input : 10.8 W & 3.6 W Air Flow : 76.8 CFM (per fan) Static Pressure : 3.04 mm-H2O (per fan) Noise Level : 33.8 dB-A (per fan) Connector : 2510 – 4 Pin / ARGB – 3Pin
Tube	Length : 400 mm Material : Rubber
Radiator	Dimension : 397 × 120 × 27 mm Material : Aluminum
COMPATIBILITY	CPU Socket : Intel LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 AMD AM5 / AM4
TDP	360W
