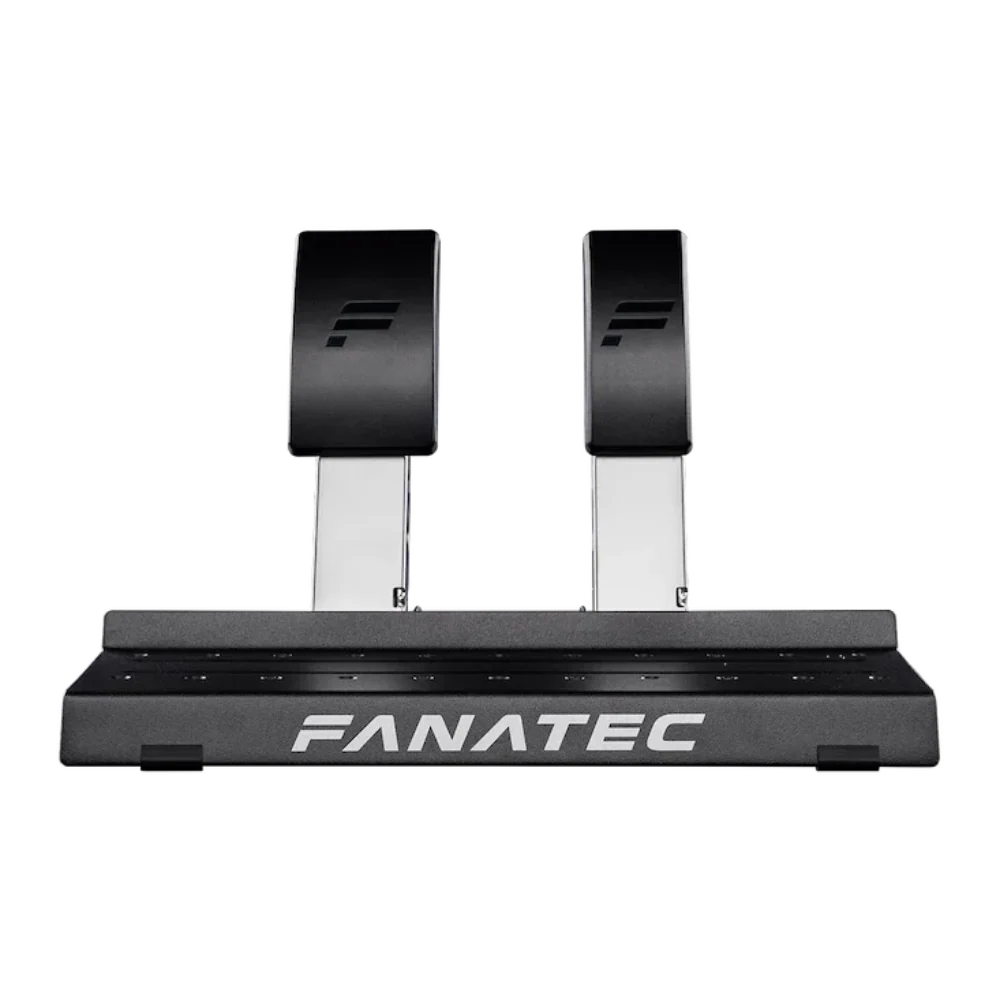

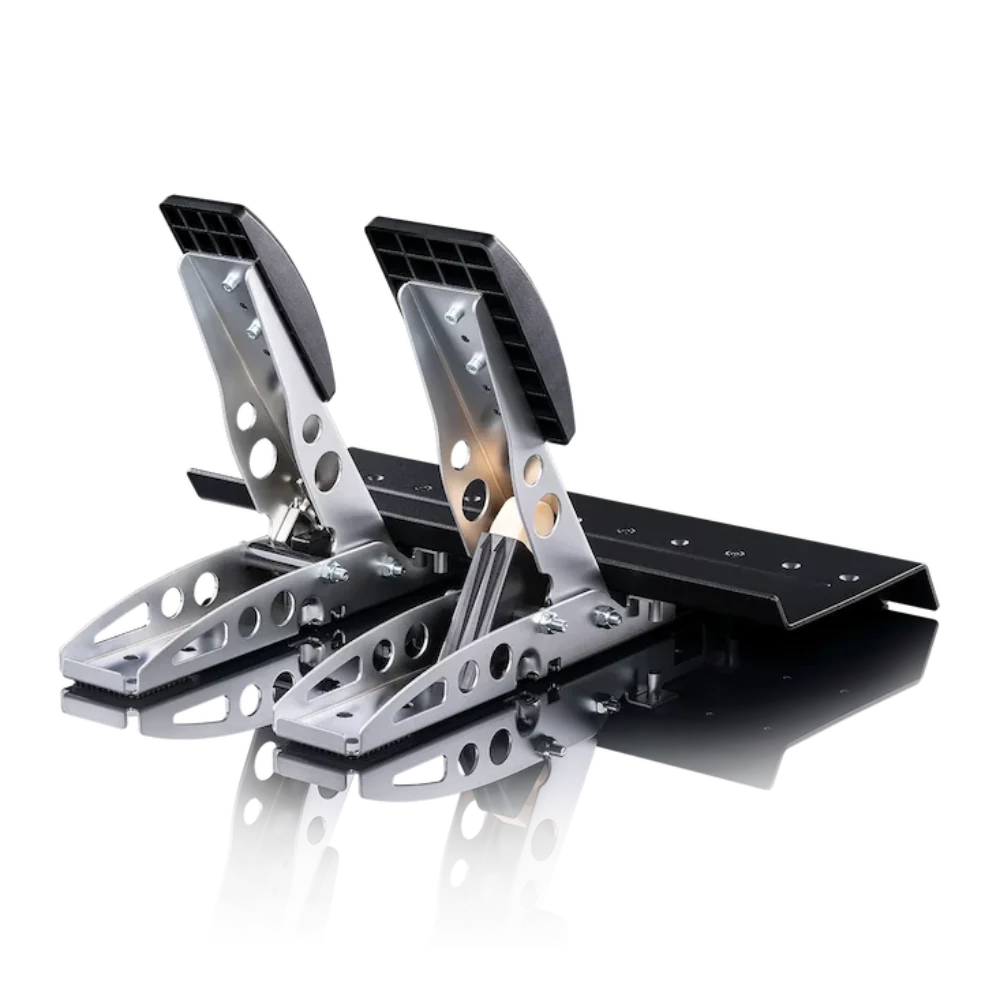

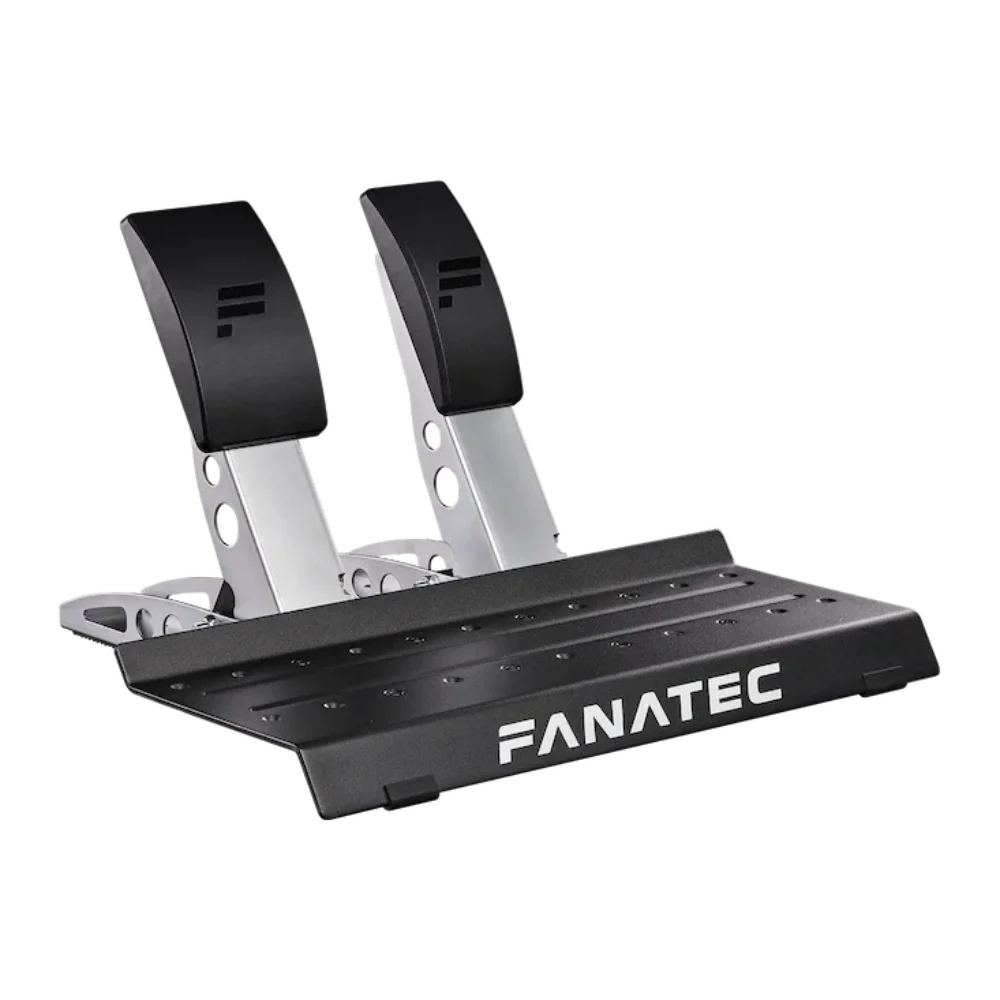

FANATEC CSL Pedals

Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensor and consistent performance.

Three ways to upgrade.

Upgrade your CSL Pedals with metal pedal faces (optional), the Clutch Kit (optional), or the Load Cell Kit (all kits sold separately). The Clutch Kit provides a third pedal at the lowest possible price. The Load Cell Kit is an alternative to the Clutch Kit, also providing a third pedal, while upgrading the brake and main electronics.

Clutch Kit or Load Cell Kit.

The CSL Pedals Clutch Kit (sold separately) adds a dedicated clutch pedal, with a stiffer spring than the throttle and the same wider pedal face as the brake. The CSL Pedals Load Cell Kit (sold separately) is the ultimate upgrade for realistic braking feel. When upgrading to the Load Cell Kit, the standard brake pedal can be used as the clutch.

Metal pedal faces.

Transform the appearance of the CSL Pedals with durable, anodised aluminium pedal faces (sold separately). The throttle pedal face is extended, allowing for a comfortable heel-and-toe technique.

Get started instantly.

CSL Pedals couldn’t be easier to set up. The simple design means they’re easy to clean and maintain too.

Plug and Play.

CSL Pedals connect directly to any supported FANATEC® Wheel Base via the included RJ12 cable. Alternatively, they can be used as a standalone USB device with the ClubSport USB Adapter (available separately), or with the CSL Pedals Load Cell Kit (sold separately).

Adjustable.

Find a comfortable driving position with customisable horizontal pedal spacing and pedal plate height adjustment. The pedals can be hard-mounted, or you can easily brace them against a wall or hard surface thanks to the vertical plates at the rear.



Specifications of FANATEC CSL Pedals



Model	CSL_P
Pedal Set	Two-pedal set
Included Pedals	Throttle and brake
Upgrade Support	Upgradeable to three pedals
Construction	All-metal construction excluding pedal faces
Material	Heavy steel
Optional Pedal Plates	Optional anodised aluminium pedal plates
Sensors	Contactless Hall sensors (12-bit)
Sensor Locations	Brake and throttle
Brake Spring	Stiffer than throttle spring
Brake Resistance	PU foam damper for progressive braking feel
Clutch Upgrade	CSL Pedals Clutch Kit
Load Cell Upgrade	CSL Pedals Load Cell Kit
Load Cell Kit Feature	Adds third pedal and upgrades brake and electronics
Pedal Adjustment	Sideways adjustable pedal position
Pedal Face Adjustment	Height-adjustable pedal faces
Mounting Design	Supports inverted mounting
Rear Plates	Vertical rear plates for wall bracing
Finish	Pearl chrome plating on pedal bases and arms
Heel Rest Finish	Black powder coating
Connection	Connects directly to compatible Fanatec Wheel Bases
Compatiblity	Compatible with: All CSL Elite Wheel Bases CSL DD Wheel Base All ClubSport Wheel Bases All Podium Wheel Bases ClubSport USB Adapter CSL Pedals Clutch Kit CSL Pedals Load Cell Kit A wheel base firmware update may be necessary to ensure best performance. Firmware from Fanatec Driver 402 or higher is recommended.
Platforms	PC: The CSL Pedals package does not come with a USB connector and must be connected directly to a compatible Fanatec Wheel Base. To operate as a standalone input device, use the ClubSport USB Adapter (available separately) or the CSL Pedals Load Cell Kit (sold separately). The Load Cell Kit adds a USB connector. Consoles: This pedal set can be used on gaming consoles, if connected through a Fanatec Wheel Base / Racing Wheel. Check the Fanatec product page for relevant information on how the pedals connect to your console. It will not work on consoles if connected with the ClubSport USB Adapter.
What's Included	Throttle pedal unit Brake pedal unit with PU foam damper Heel rest 1x Wheel Base connection cable RJ12/RJ12 (~2m) 1x Torx key M4x12 mounting bolts (only to mount pedals to heel rest) Hard-mounting spacers Replacement rubber feet (floor protection) 1x Quick Guide
Warranty	3-Year Warranty
