FANATEC Clubsport V2 Handbreak
Features of FANATEC Clubsport V2 Handbreak
Ideal for rally and drifting, the all-new ClubSport Handbrake V2 is a huge step forward in performance and durability with stronger components and improved electronics.
Sideways fun
All-new design
Smooth analogue input
Plenty of adjustment
The ClubSport Handbrake V2 offers much more adjustability than its predecessor, meaning you can set the preload, angle, and travel to suit your driving style.
Adjustable preload

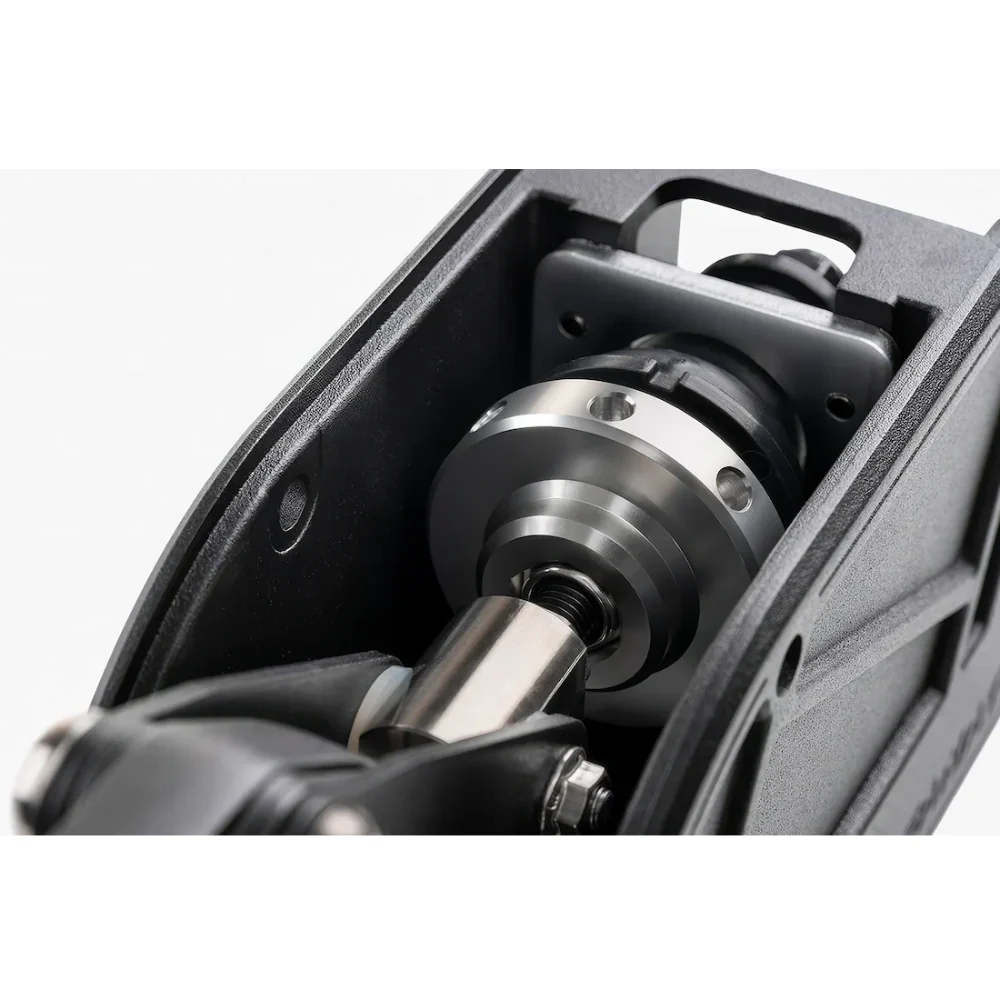

Simply open the casing for quick access to the preload adjustment disc. By adding more preload, you create more tension on the elastomer and load cell stack, increasing the initial resistance on the lever.
Adjustable angle and travel
Three mounting positions on the lever allow for large angle changes, along with a rear bolt assembly for fine-tuning. The hand-removable spacer can be placed in two orientations, allowing a quick change between three travel settings.
Mounting options
Hard-mount the ClubSport Handbrake V2 to a rig with various mounting holes, or to the side of a ClubSport Shifter (sold separately).
Side-mount
The ClubSport Handbrake V2 is designed to mount to the side of a ClubSport Shifter (sold separately) with the included spacer.
Angle mount
Mounting slots instead of holes allows the handbrake to be angled slightly towards the driver, which can be more comfortable.
Special Notes
-
To ensure the best performance, it is important to update your Wheel Base (and any other connected devices) to the latest firmware contained within the Fanatec Driver.
-
It is possible to table-mount the ClubSport Handbrake V2 by first mounting it to a ClubSport Shifter in combination with the ClubSport Shifter Table Clamp (sold separately).
Specifications of FANATEC Clubsport V2 Handbreak
| Model | CS_HB_V2 |
| Product Type | Handbrake |
| Usage | Ideal for rally and drifting |
| Construction | Steel and aluminum construction |
| Sensor Type | Load cell sensor |
| Input Type | Precision analog input |
| Bearings | Ball bearings |
| Casing Material | Powder-coated black aluminum |
| Lever Material | Powder-coated black aluminum |
| Grip | Removable rubber grip |
| Adjustability | Adjustable stiffness, angle, and travel |
| Preload Adjustment | Supported |
| Angle Positions | Three positions |
| Orientation | Invertible |
| Fine Angle Tuning | Rear bolt assembly |
| Travel Adjustment | Removable spacer system |
| Supported Travel Lengths | 60 mm, 70 mm, and 80 mm |
| Mounting Options | Comprehensive mounting support |
| Shifter Mounting | Mounts to side of ClubSport Shifter |
| Spacer Included | Yes |
| Aluminum Profile Mounting | Supported |
| Mounting Orientation | Vertical or horizontal |
| Table Mounting | Supported |
| Connection Type | RJ12 to RJ12 |
| Wheel Base Connection | Connects directly to Fanatec Wheel Base |
| USB Adapter Compatibility | Compatible with ClubSport USB Adapter |
| Standalone USB Support | Supported on Windows PC |
| Platform Compatibility | PC and consoles |
| Compatiblity | This product is compatible with the following Wheel Bases: CSL Elite Wheel Base* CSL Elite Wheel Base V1.1* CSL Elite Wheel Base + - officially licensed for PS4™* CSL DD Gran Turismo DD Pro Wheel Base ClubSport Wheel Base V2* ClubSport Wheel Base V2.5* ClubSport DD ClubSport DD+ PODIUM Wheel Base DD1 PODIUM Wheel Base DD1 PS4™ PODIUM Wheel Base DD2 *The analogue signal is not optimised for belt-driven Wheel Bases at this time (it is functional, but the 'max' output does not calibrate as intended). This will be improved in a future firmware update.Pedals: It is also possible to connect this product to the Handbrake port on the following pedals: CSL Elite Pedals Load Cell Kit CSL Elite Pedals V2 ClubSport Pedals V3 ClubSport Pedals V3 inverted Other: ClubSport USB Adapter (only needed to use as a standalone USB device on PC) |
| Platforms | PC: this product is compatible with Windows PC when connected to a supported Fanatec Wheel Base or Pedals (see list below). It is also possible to use as a standalone USB device using the ClubSport USB Adapter (sold separately). Functionality is game-dependent. Xbox: this product becomes compatible with Xbox One and Xbox Series X|S consoles when connected to a supported Fanatec Wheel Base + Xbox licensed Fanatec Steering Wheel. Functionality is game-dependent. PlayStation: this product becomes compatible with PlayStation 4 and PlayStation 5 consoles when connected to a supported PlayStation-licensed Fanatec Wheel Base. Functionality is game-dependent. |
| What's Included | ClubSport Handbrake V2 Tools RJ12 cable (2m) Quick Guide |
| Warranty | 3-Year Warranty |
