FANATEC Clubsport F1 Racing Wheel Bundle
Features of FANATEC Clubsport F1 Racing Wheel Bundle
The ClubSport Racing Wheel F1® combines an advanced Formula Steering Wheel with a unique blue forged carbon finish and the 18 Nm ClubSport DD+ to deliver consistent torque. FullForce technology fuses high-fidelity vibration cues with the core force feedback signal to deliver a more immersive driving experience. Officially licensed for PS5® and PS4® consoles.
FEEL THE PRECISION OF FORMULA 1® WITH EVERY LAP YOU TAKE.
DESIGNED FOR F1® SIM RACING.
INTUITIVE INPUTS.
THE MOST ADVANCED DIRECT DRIVE SYSTEM OFFICIALLY LICENSED FOR PLAYSTATION®5.
The combination of PlayStation®5 console performance with FANATEC® Direct Drive technology delivers responsive and incredibly dynamic force feedback. Of course, the ClubSport DD+ Wheel Base works on PC too.
SMOOTH OPERATOR.
By splitting the rotor into offset segments, cogging torque is naturally reduced. Combined with our patented FluxBarrier technology which increases efficiency and smoothness, the result is crystal-clear force feedback information in every driving situation.
CONSISTENT TORQUE, LAP AFTER LAP.
Engineered to meet strict cooling requirements, the ClubSport DD+ is the most thermally stable Wheel Base in its class, so you can have absolute confidence that the torque output and force feedback will remain consistent, no matter how long you drive.
LIGHTNING FAST ACCELERATION.
The speed of the ClubSport DD+ servo motor allows us to fine-tune its behaviour with more accuracy than any previous Fanatec Wheel Base. This means your steering wheel can feel very active, clearly communicating the smallest details, while also feeling perfectly stable, and resistant to unwanted oscillation.
FULLFORCE: FORCE FEEDBACK 2.0 FOR DIRECT DRIVE.
The existing force feedback protocol was designed for gear and belt-driven devices - the only hardware available at the time. FullForce is a new force feedback protocol tailored specifically for FANATEC® Direct Drive. Leveraging the instantaneous response and zero backlash of direct drive technology, FullForce generates high-frequency vibrations for a new level of immersive effects. Feel the engine revs, and details of the road surface like never before. Only FullForce gives you the full experience of driving a race car.
PRECISION RESPONSE.
Class-leading slew rate performance combined with the powerful processor makes every motor reaction incredibly fast and dynamic, while remaining perfectly stable. This behaviour lends itself to traditional force feedback signals as well as enhanced FullForce signals (in supported games).
Special Notes
- Holding torque increased from 15 Nm to 18 Nm via firmware update (May 2026, version V1.4.2.3 or later). Update your device using the latest Fanatec App available on the Software page.
-
Not suitable for children. The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
Specifications of FANATEC Clubsport F1 Racing Wheel Bundle
| Model | CS_RW_F1_EU |
| ClubSport Racing Wheel F1® | |
| Wheel Type | F1®-style steering wheel |
| Wheel Diameter | 270 mm |
| Front Plate Material | 5 mm-thick blue carbon fibre |
| Front Plate Feature | Unique finish on each wheel |
| Grip Material | Genuine leather |
| Grip Feature | Perforated for breathability |
| Paddle Module | ClubSport Magnetic Paddle Module preinstalled |
| Paddle Plate Material | 3 mm-thick black anodised aluminium |
| Paddle Module Cage | Diecast and CNC machined aluminium |
| Magnet Type | Neodymium magnets |

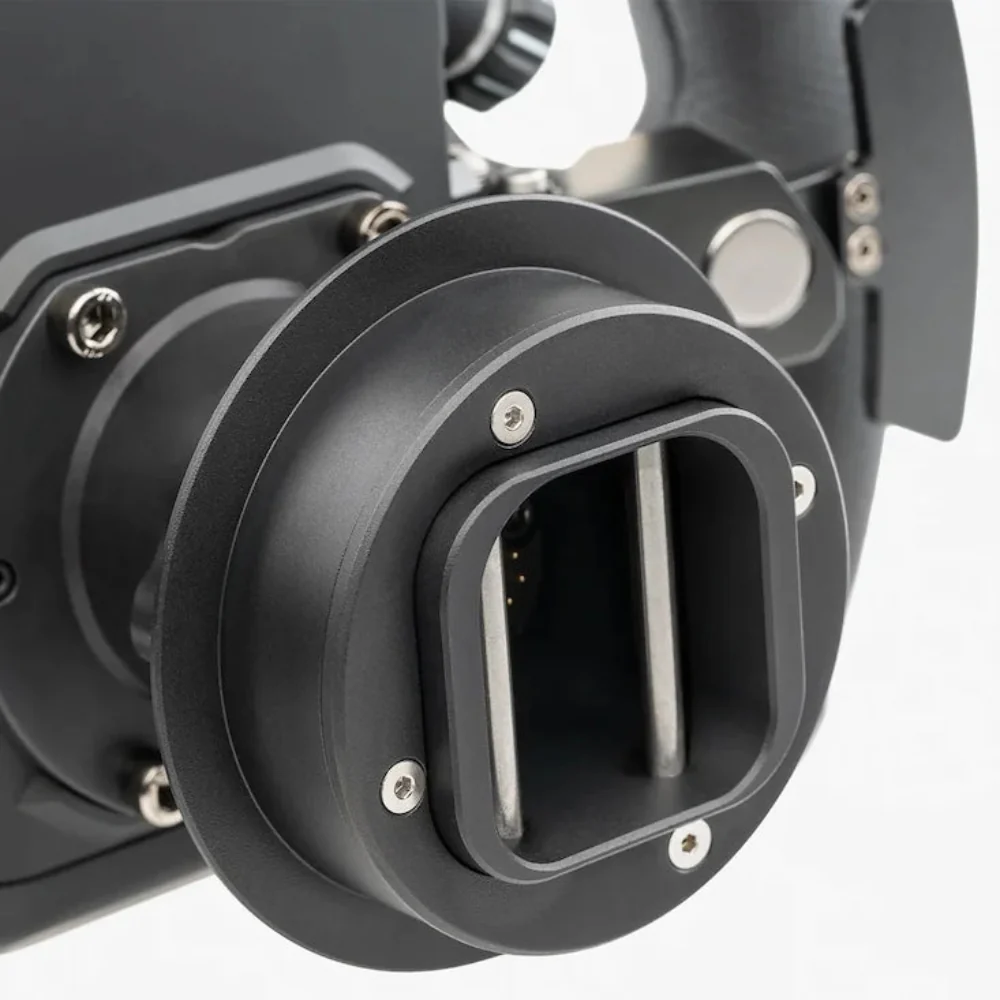

| Quick Release | QR2 Wheel-Side preinstalled |
| Quick Release Material | Diecast aluminium |
| Quick Release Finish | CNC-machined and black anodised |
| Quick Release Feature | Precision fit for FullForce detail |
| Buttons | 11 buttons |
| Paddles | Four paddles |
| Switch Type | Ultra-reliable switches |
| Toggle Switches | Two 2-way toggle switches |
| Multi-Position Switches | Two 12-way multi-position switches |
| Encoder Functionality | Supported |
| FunkySwitch™ | 7-way FunkySwitch™ with directional inputs, push button, and rotary encoder |
| Joystick | Analogue joystick |
| Thumb Encoders | Two thumb encoders |
| RevLEDs | Nine multi-colour LEDs |
| RevLED Function | Displays motor RPM and optimal shifting point |
| FlagLEDs | Two FlagLEDs with three multi-colour LEDs each |
| FlagLED Function | Indicates tyre slip, flag warnings, pit limiter, and more |
| Display | 1" 128x64 white OLED display |
| Display Function | Shows telemetry data such as speed or gear |
| Tuning Functions | Integrated tuning functions with OLED display |
| ClubSport DD+ Wheel Base | |
| Motor Type | Direct Drive servo motor |
| Design Origin | Custom-designed in Germany |
| Holding Torque | 18 Nm |
| Rotor Design | Optimised skew angle on rotor magnets |
| Motor Technology | FluxBarrier technology |
| Force Feedback Technology | FullForce technology |
| Force Feedback Protocol | New Fanatec Direct Drive protocol |
| Latency | Super low-latency detail effects |
| Cooling System | Passive cooling |
| Thermal Stability | Most thermally stable Wheel Base in its class |
| Performance | Consistent under extreme conditions |
| Quick Release System | QR2 |
| QR2 Design | Optimised from the ground-up |
| Electronics Module | Integrated with shaft |
| Construction Material | Diecast aluminium |
| Finish | CNC-machined finish |
| Quick Release Type | Motorsport-derived |
| QR1 Compatibility | QR1 downgrade possible |
| Standard Tuning Menu | Supported |
| Advanced Tuning Menu | Supported |
| Position Sensor | High-resolution contactless Hall-position-sensor |
| Rotation | 2520 degrees |
| Rotation Adjustment | Electronically limited and adjustable |
| Slip Ring System | Cable-free power and data transfer |
| Ecosystem Compatibility | Compatible with Fanatec ecosystem |
| Mounting System | T-nut rail system on sides and bottom |
| Power Port | Yes |
| Console/PC Connection | USB-C |
| Shifter Ports | Shifter 1 and Shifter 2 |
| Shifter 2 Support | Sequential only |
| Pedal Port | Yes |
| Handbrake Port | Yes |
| CAN Port | Supported for future Fanatec peripherals |
| Front-Mounted Inserts | Threaded inserts for future Fanatec accessories |
| Compatiblity | The ClubSport DD+ Wheel Base is compatible with: All Fanatec Steering Wheels (with QR2) All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection) ClubSport Shifter (all versions) ClubSport Handbrake All Fanatec Cockpits ClubSport DD Table Clamp ClubSport Table Clamp V2 Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers) Note: ClubSport Static Shifter Paddles are not supported. |
| Platforms | This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles. This product is compatible with PC on all major racing games. Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use. Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment. |
| What's Included | ClubSport Steering Wheel F1® PS5 QR2 Wheel-Side (preinstalled) ClubSport DD+ Wheel Base QR2 Base-Side (Type-F) (preinstalled) Power Supply (regional) 4x T-nuts for rail mount system USB cable (Type-C to Type-A) Quick Guide |
| Warranty | 3-Year Warranty |
