DEEPCOOL CH160 Plus MATX Mini Tower Cabinet ( Black )

Features of DEEPCOOL CH160 Plus MATX Mini Tower Cabinet ( Black )



CH160 PLUS

The CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling.

BUILT TO BREATH

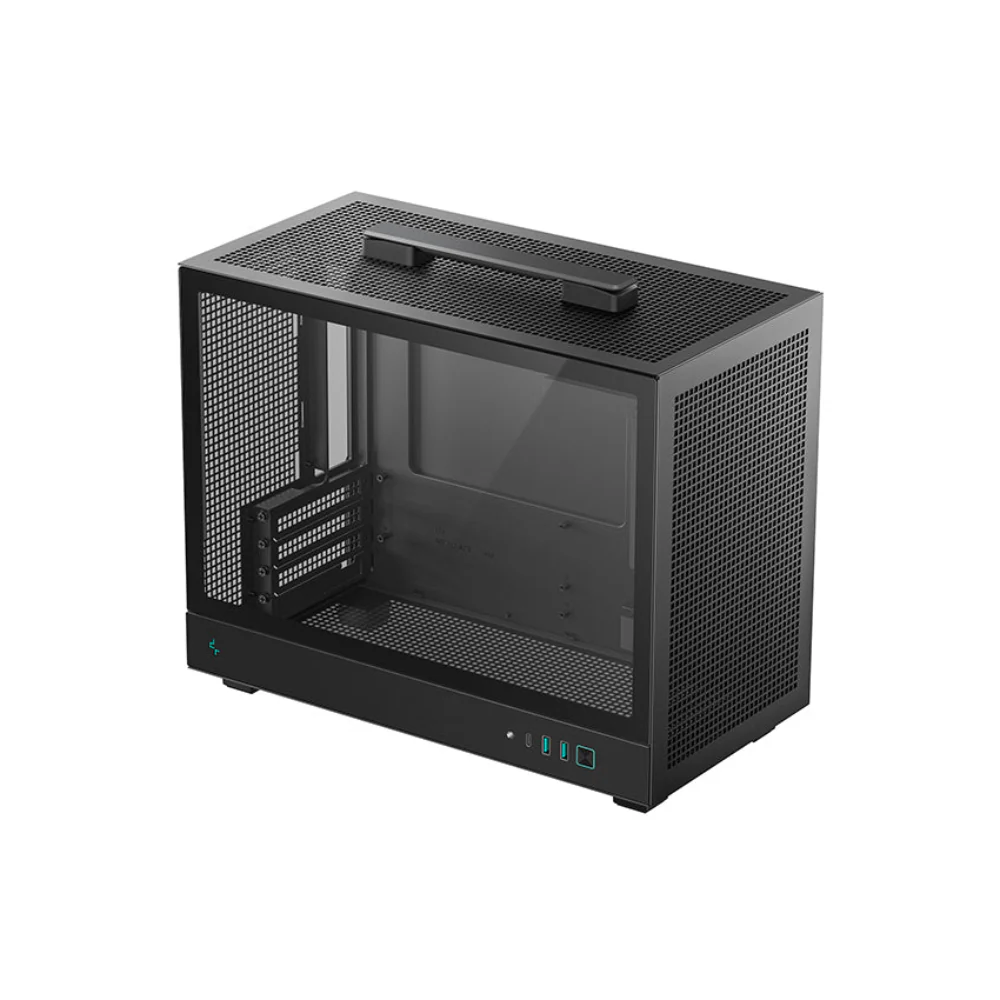

Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.

NOW WITH LIQUID COOLING!

Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.

BUILT TO FIT MORE

With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.

CUSTOMIZE WITH PURPOSE

Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.

CONVENIENCE IN EVERY DETAIL

Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.



Specifications of DEEPCOOL CH160 Plus MATX Mini Tower Cabinet ( Black )



P/N	R-CH160-BKNGM0-G
Product Dimensions	375mm*195mm*323.5mm(L×W×H)
Net Weight	4.2Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX
Front I/O Ports	USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5″ Drive Bays	1
2.5″ Drive Bays	1+1
Expansion Slots	4 Slots
Pre-Installed Fans	None
Fan Support	Front:1×120mm/1×140mm（With SFX PSU） Top:2×120mm Rear: 1×120mm
Radiator Support	Front: NA Top:120/240mm Bottom: NA Rear:120mm
CPU Cooler Height Limit	164mm
GPU Length Limit	342mm
Power Supply Type	ATX PS2（maximum length: 140mm)/SFX/SFX-L
Warranty	2 Years
Note**	**Prices, Specifications & Features are subject to change without notice
