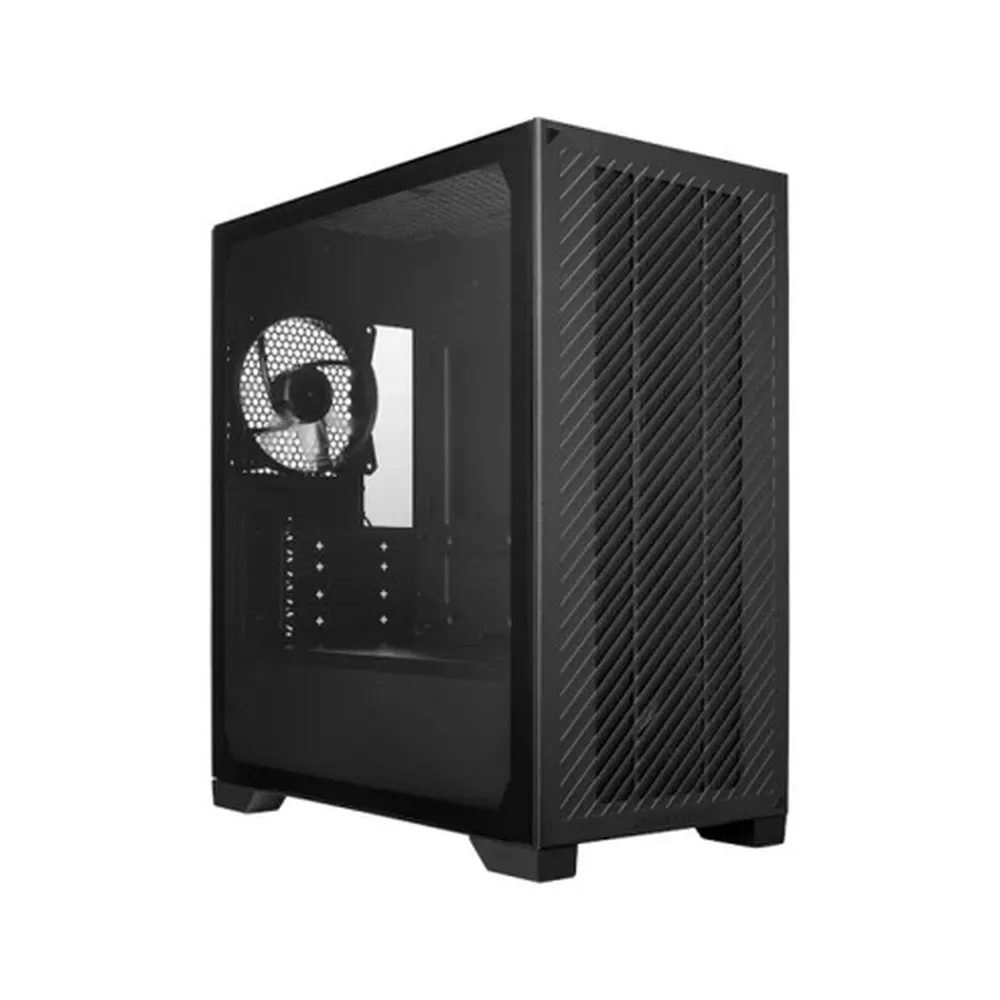

COOLER MASTER Elite 301 Lite MATX Mini Tower Cabinet (Black)
Feature of COOLER MASTER Elite 301 Lite MATX Mini Tower Cabinet (Black)
Effortless Efficiency
High in value and attention to detail, Cooler Master Elite 301 MATX Cabinet lite offers users a cost effective, space conscious solution to gaming and computing needs.
Elite 301 features a large intake grill to ensure a smooth, and efficient running system. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.
Tool-less Intake Panel
Constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently. The front panel cooler master cpu case could be easily removed by magnets, making it easier for daily maintenance.
Versatile Cooling Options
Supports up to six fans and 280mm radiator to ensure that performance is not compromised.
Large Support, Minimized Footprint
Despite its compact size, Elite 301 computer cpu case lite supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies.
USB Type-C Support
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
Specifications of COOLER MASTER Elite 301 Lite MATX Mini Tower Cabinet (Black)
| Model | E301L-KGNN-S00 |
| Exterior Color | Black |
| Materials - Exterior | Steel, Plastic, Tempered Glass (Left Side Panel) |
| Dimensions |
390 x 203.5 x 430mm incl protrusions 377 x 203.5 x 410mm excl protrusions |
| Volume | 34.13L (incl. Protrusions) |
| Motherboard Support | ITX / Micro ATX |
| Expansion Slots | 4 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 (Max. 2) |
| I/O Panel |
1x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 1 Type-C 1x 3.5mm Combo |
| Pre-installed Fans - Rear | 1x 120mm Black Fan |
| Fan Support - Front | 3x 120mm |
| Fan Support - Top |
2x 120mm 2x 140mm |
| Fan Support - Rear | 1 x 120mm |
| Radiator Support - Front | 120/240mm |
| Radiator Support - Top | 120/140/240/280mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 163.5mm |
| Clearance - PSU | 160mm |
| Clearance - GFX | 365mm (without front fans & radiator) |
| Cable Routing | 18.5mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX |
| Size | Mini Tower |
| Warranty | 2 years |
