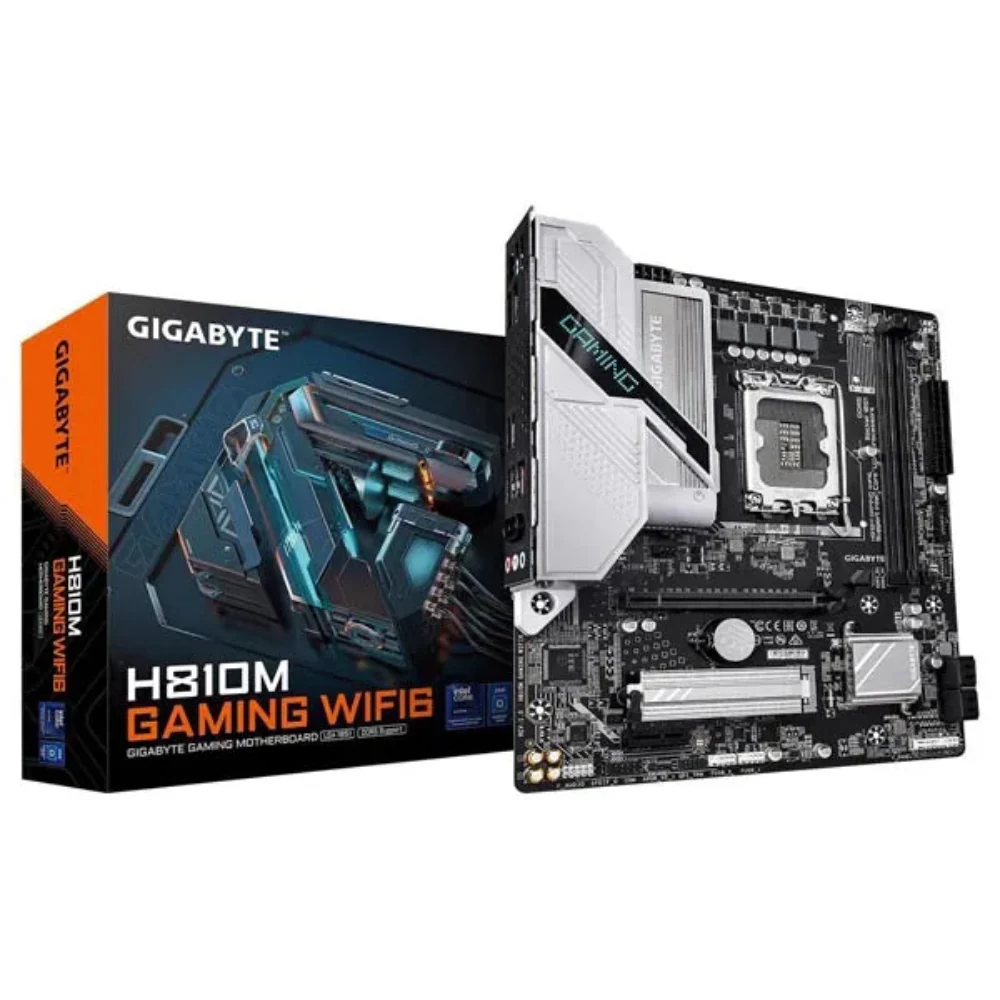

Features of GIGABYTE H810M Gaming Wifi6 DDR5 Intel Motherboard

Supports Intel® Core™ Ultra processors (Series 2)
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch: PCIe x16 Slot with Quick Release Design
M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs
Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity: HDMI, DisplayPort

X3D Turbo Mode

Unleash New Era Gaming Performance with One-Click Activation.

X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.

One-Click Acceleration:

Enhance Gaming FPS Performance with a single click.

EnhanceUp to 18%

Steady Power

Better Play GAMING Series, steady power keeps your gaming smooth.

Hybrid VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

VCORE Phases

Unlock the full power of your multi-core CPU for unmatched performance.

VCCGT Phase

Optimized for integrated GPU performance and memory management within the CPU.

VCCSA Phases

Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling

Comprehensive Thermal

GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Massive cooling surface

Exceptional heat dissipation

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

Cool. Quiet. Customized.

Easy & Friendly

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

WIFI EZ-Plug

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ-Latch Designs

User-friendly designs simplifying the assembly process.

* Images for reference only

M.2 EZ-Latch Plus

screwless installation for M.2 SSDs

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Fast-Access Controls

Handy, Revert, Refresh

Connectivity

Future Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

All-round Connectivity

Wi-Fi 6
2.5 GbE LAN

Hi-Fi Audio

High-End Audio Capacitors
Audio Noise Guard

Ultra Durable™

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

UD Power Connector

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins

Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Tailored Computing

Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

UC BIOS

Restructured with user-centered and intuitive performance adjustment mechanisms.

Multi-Theme

Multiple BIOS skin with newly exclusive grayscale mode.

GIGABYTE Control Center

A unified software platform encompassing multiple GIGABYTE product.

RGB Fusion

Personalize the RGB illumination on your motherboard and connected peripherals.

HWiNFO

Exclusive Partnership

Memory Timings Monitor

Specification of GIGABYTE H810M Gaming Wifi6 DDR5 Intel Motherboard

Brand	GIGABYTE
Model	H810M GAMING WIFI6
Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)
Chipsets
Chipset	Intel H810
Memory
Number of Memory Slots	2x288pin (DDR5)
Memory Standard	Support for DDR5 6400/5600
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
PCI Express x1	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
SATA RAID	0/1/5/10
Onboard Audio
Audio Channels	7.1 Channels
Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	BLUETOOTH 5.3
Rear Panel Ports
Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
Software Feature
BIOS Feature	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.5"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features
Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Smart Backup

GIGABYTE H810 Motherboard

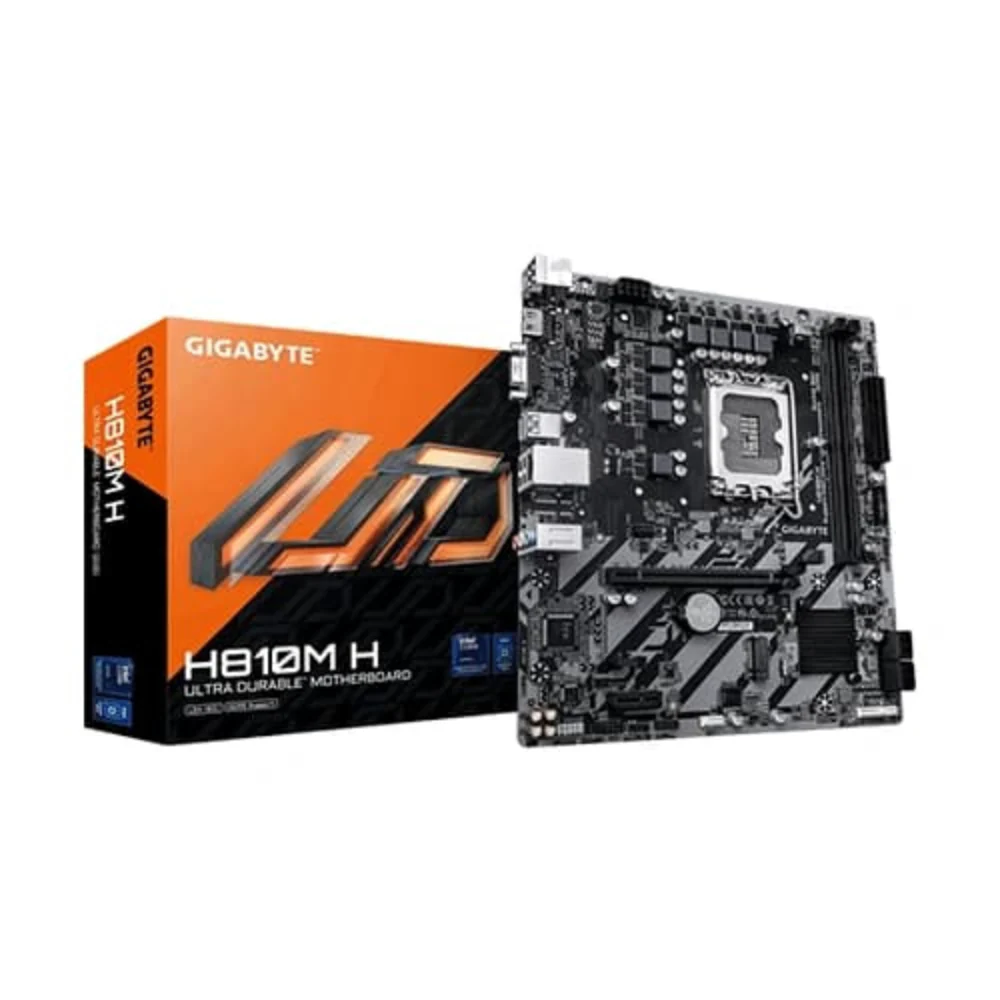

GIGABYTE H810M H DDR5 Intel Motherboard

GIGABYTE H810M Gaming Wifi6 DDR5 Intel Motherboard

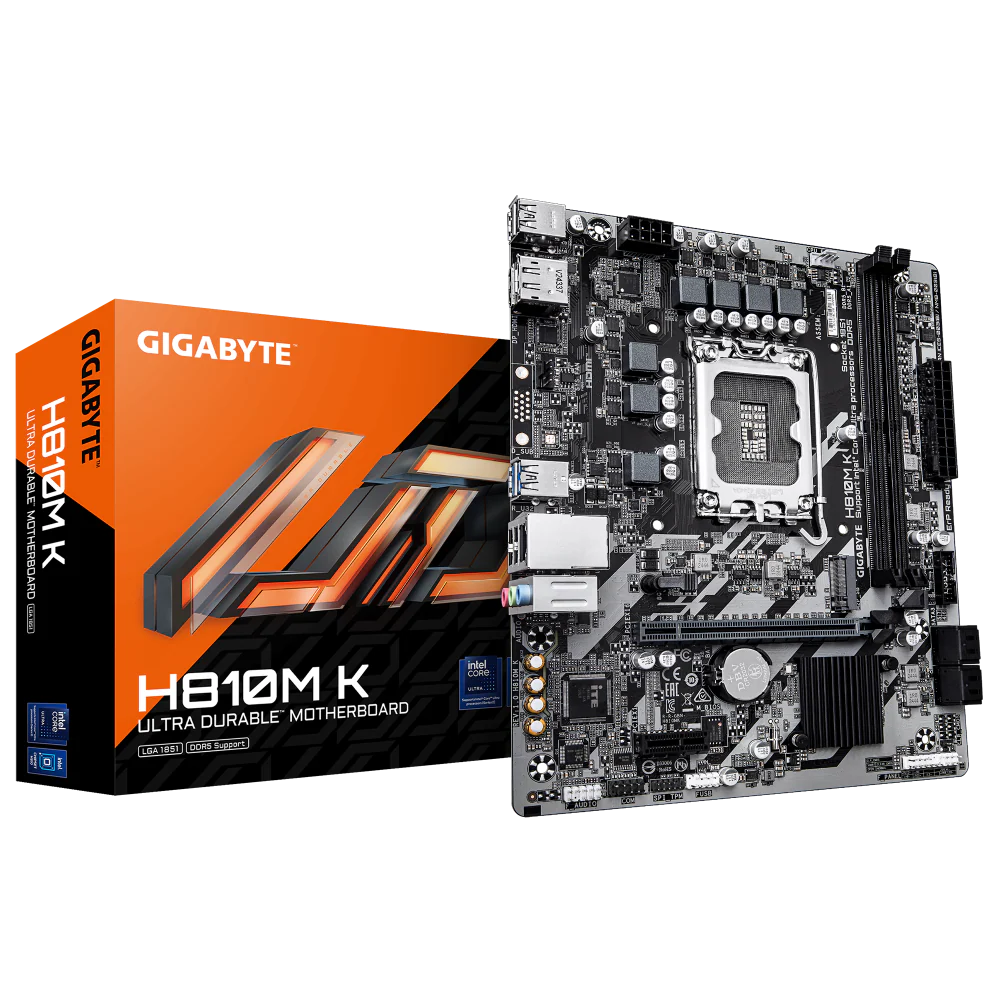

GIGABYTE H810M K DDR5 Intel Motherboard
